Aftermarket ANSI Pump Parts: 223 OEM Numbers Cross-Referenced

YSM manufactures aftermarket, non-OEM ANSI pump replacement parts for ASME B73.1 pumps of the Goulds 3196 type and Durco Mark 3 type, made to those dimensional patterns under two programmes, G196 and D Mark III. Both programmes cover the same nine part groups: casing, impeller, cover, adaptor, frame, bearing housing, feet, shaft and sleeve, each listed with its YSM reference and the OEM part number it cross-references. Interchange applies only to the same size designation, group and configuration, confirmed against the nameplate and the installed pump drawing before quotation. Complete replacement pumps by make follow below.

Send Part Number or NameplateRequest Urgent Replacement Parts
B73.1Dimensional standard behind every interchange review
2Interchange programmes — G196 and D Mark III
9Part groups per programme, casing to feet

Part interchangeability applies to the corresponding size, group and configuration in the G196 and D Mark III programmes; the pump nameplate identifies the matching part before order.

G196 MTX frame sectional drawing with numbered part positions
MTX-frame sheet from the sectional drawings below — every wet-end and power-end position carries the reference number used in quotation.

Replacement Programmes by Make

Six changeover programmes, each reviewed against the frame structure the installed pump carries.

Or Start from the Pump Family

YSM

G196 Series — for the Goulds 3196 type

The family behind the 811 / 8196 / 2196 / 3550 / PWA programmes.

Open the G196 Series

Parts Coverage by Series

An installed ANSI pump routinely outlives its paperwork, and sometimes its maker’s interest in it. What keeps it serviceable is the standard itself: ANSI/ASME B73.1 fixes envelope and interface dimensions by size designation, so a casing, impeller or shaft can be manufactured to the referenced design’s dimensional logic and reviewed for fit on drawings before anything ships. YSM runs two such programmes — G196 for 3196-type pumps and D Mark III for Mark III-type pumps — each covering the full wet-end and power-end part scope, manufactured to the same B73.1 logic and confirmed against the pump nameplate rather than assumed from a reference number.

Goulds, 3196, Durco and Mark III are trademarks of their respective owners. YSM Pumps is an independent manufacturer and is not affiliated with, sponsored or endorsed by ITT Goulds Pumps or Flowserve. Interchangeability refers to dimensional interchangeability of the referenced standard designs; verify size, group and configuration from the pump nameplate before ordering.

Sectional Drawings & Parts Lists

The sectional sheets are the working documents of the parts programme: find the part on the drawing, read its position number, and send that number with the nameplate data. Positions on these sheets are the same references carried in quotations and order documents, so an enquiry that quotes them starts a review cycle ahead. G196 sheets are published for the STX, MTX and XLT-X frames as labelled; identification for the other published frame sizes follows the same position-number scheme during review.

Click a drawing to enlarge.Tap a drawing to open the full-resolution file.

G196 programme — frame sectionals

G196 STX frame sectional drawing with numbered part positions

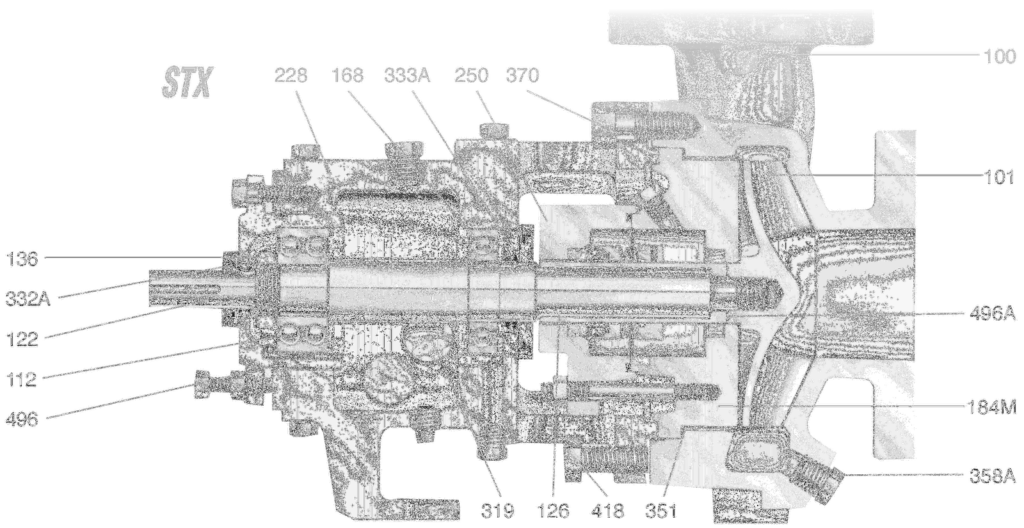

STX frame sectional — each callout is the position number quoted in a parts enquiry, from casing (100) and impeller (101) through the power-end groupsSTX
G196 MTX frame sectional drawing with numbered part positions
MTX frame sectional, same position schemeMTX
G196 XLT-X frame sectional drawing with numbered part positions
XLT-X frame sectional, same position schemeXLT-X

D Mark III programme — exploded parts view

D Mark III exploded parts view with numbered positions and Group II and Group III bearing retainer details
Exploded view of the wet end and power end — insets carry the Group II bearing retainer, Group III double-row bearing retainer and the duplex angular-contact bearing optionD MARK III
Both programmes are also held as print-ready PDF sheets — G196 Sectional Drawing & Parts List — Rev. A and D Mark III Sectional Drawing & Parts List — Rev. A — collected with the rest of the published record on the technical downloads page.

OEM Part Number Cross-Reference

Most maintenance records hold one numbering system — the OEM’s — and an enquiry does not need it translated first: every position in both programmes carries a YSM reference number alongside the OEM part number of the referenced standard design it is manufactured to interchange with, dimensionally, at the same size and group. The tables publish that mapping in full, wet end by size first, then the power-end and accessory groups. Quote whichever number the record holds; the review confirms size, group and configuration from the pump nameplate before quotation, exactly as it does for the position numbers on the sectional sheets above. Selected numbers also have a page of their own in the pump part number lookup, which names the part, its size and frame or group, and the other positions that belong to the same size.

Reference & OEM number finder

Type an OEM number, a YSM reference, a pump size or a group, or filter by programme and part; plain typing works — 2×3-8 finds 2×3-8. The finder searches only the published cross-reference set in the tables below, and a match is a cross-reference for quotation review, not a fit conclusion — size, group and configuration are still verified from the pump nameplate.

G196 programme — reference & OEM part numbers

Wet end by size across the STX, MTX / LTX and XLTX frames, then the power-end and accessory items by frame.
Frame Size Casing Impeller Cover
YSM ref. OEM no. YSM ref. OEM no. YSM ref. OEM no.
STX 1×1.5-6 GAB100 104554 GAB3 076781 GAA106 GAA106B GAA106F R104562 RC04056A01 RC01382A01
1.5×3-6 GAD100 104555 GAD3 076792
2×3-6 GKE100 105204 GKE3 0B10176
1×1.5-8 GAC100 104556 GAC3 076793 GAC106 GAC106B GAC106F R104564 RC04057A01 RC01382A07
1×1.5-8LF GYB100 D06628A GYB3 C03394A
1.5×3-8 GAE100 104557 GAE3 076794
MTX / LTX 2×3-8 GAF100 24741 GAF3 0100161 GAF106 GAF106B GAF106F R100788 RC04058A01 RC04109A01
3×4-8 GAG100 24743 GAG3 0100163
3×4-8G GAGG100 24745 GAGG3 0100165
1×2-10 GAH100 104878 GAH3 0B10009 GAH106 GAH106B GAH106F R100585 RC04059A01 RC04110A01
1×2-10LF GYC100 D06638A GYC3 C03488A
1.5×3-10 GAJ100 24960 GAJ3 0100593
2×3-10 GAL100 24961 GAL3 0100595
3×4-10 GAN100 24962 GAN3 0100597
3×4-10H GAP100 D00452A02 GAP3 0C00262A02
4×6-10 GAQ100 25189 GAQ3 0101528
4×6-10H GAR100 D03123A GAR3 0C02521A
1.5×3-13 GAS100 24963 GAS3 0100537 GAS106 GAS106B GAS106F R100529 RC04060A01 RC04111A01
1.5×3-13LF GYD100 D06544 GYD3 0C03393A
2×3-13 GAT100 D02450A GAT3 0100539
3×4-13 GAU100 24965 GAU3 0B10542
4×6-13 GAW100 D04930A GAW3 0101500
XLTX 6×8-13 GNA100 25450 GNA3 0103609 GNA106 GNA106B GNA106F R104707 RC04063A01 RC04115A01
8×10-13 GNB100 D02488A02 GNB3 0D02490A02
6×8-15 GNF100 25494 GNF3 0256116 GNE106 GNE106B GNE106F R104710 RC04064A01 RC04116A01
8×10-15 GNC100 2555 GNC3 0256119
8×10-15G GND100 25665 GND3 0256122
Part group Frame / size YSM ref. OEM no.
Adaptor STX 8″ GKB108 76782
MTX 8″ GAF108 R26292
MTX 10″ GAH108 R26293
MTX 13″ GAS108 R26294
XLTX 13″ GNA108 R102812
XLTX 15″ GNE108 R102814
Frame STX G1119 RD04539AA
MTX G2119 RD04540AA
LTX GLT119 RD04548AA
XLTX G3119 RE00666AA
Bearing housing STX G1201 C03340A
MTX G2201 D04872A
LTX GLT201 D04628A
XLTX G3201 D04871A
Feet MTX 8 & 10″ GAF109 B02092A
MTX 10H & 13″ GAH109 B02091A
XLTX 15″ GNF109 C04366A
Shaft STX G1105 R104434
G1105S R104435
MTX G2105 R104731
G2105S R104733
LTX GLT105 R11062
GLT105S RC03044A
XLTX G3105 R103615
G3105S R103614
Sleeve STX G1177 76772X
MTX G2177 73705X
LTX GLT177 91967X
XLTX G3177 76230

D Mark III programme — reference & OEM part numbers

Wet end by source-sheet size designation — the 1K / 2K / 3K prefix carries the power-end Group where the sheet states it — then the power-end and accessory items by Group.
Size Casing Impeller Cover
YSM ref. OEM no. YSM ref. OEM no. YSM ref. OEM no.
1K1½×1LF-4 DYA100 BY40035AI DYA3 MY55565A40 DKA106 DKA106B DKA106D DKA106E CY22418A CY52018A CY54131A CY54132A
1K1½×1-6 DKA100 DY50772 DKA3 MY50798A62
1K3×1½-6 DKC100 DY50794A DKC3 MY50746A62
1K3×2-6 DKE100 DY50733A DKE3 MY50723A62
1K1½×1LF-8 DYB100 BY40035AU DYB3 MY55575A82
1K1½×1-8 DKB100 DY52981A DKB3 MY50754A82
1K3×1½-8 DKD100 DY50659A DKD3 MY50656A82
2K3×2-8 DAF100 DY46070A DAF3 MY46066A82 DAF106 DAF106B DAF106D DAF106E CY46072A CY52024A CY53432A CY53433A
2K4×3-8 DAG100 DY46161A DAG3 MY46157A82
2K2×1LF-10 DYC100 BY40035AV DYC3 MY55574A100 DAH106 DAH106B DAH106D DAH106E CY21805A DY52026A DY53439A DY53440A
2K2×1-10A DAH100 DY46950A DAH3 MY46952AA100
3×1½-10 DAJ100 CY22118A DAJ3 MY36861A100
2K3×1½-10A DAK100 DY50995A DAK3 MY51157A100
3×2-10 DAL100 CY21802A DAL3 MY36862A100
2K3×2-10A DAM100 DY51040A DAM3 MY51049A100
2K4×3-10 DAN100 CY22235A DAN3 MY35641AA100
2K4×3-10H DAP100 CY22385A DAP3 MY36877A100
2K6×4-10 DAQ100 DY47208A DAQ3 MY47210AA100
2K6×4-10H DAR100 DY51022A DAR3 MY50824A100
2K3×1½LF-13 DYD100 BY40035AW DYD3 MY55573A130 DAS106 DAS106B DAS106D DAS106E DY21855A DY52028A DY53442A DY53443A
2K3×1½-13 DAS100 CY21853A DAS3 MY36649AA130
2K3×2-13 DAT100 CY22312A DAT3 MY49112A130
2K4×3-13 DAU100 CY22344A DAU3 MY36847AA130
2K4×3-13HH DAV100 DY50172A DAV3 MY50171AA130
2K6×4-13A DAW100 DY33074A DAW3 MY36846AA130
3K8×6-14A DNA100 DY32218AA DNA3 MY40103AA140 DNA106 DNA106B DNA106D DNA106E DY28284AA DY52030A DY53499A DY53501A
3K10×8-14 DNB100 DY48876AA DNB3 MY48879A140
3K6×4-16 DNE100 DY51013A DNE3 MY51017A160 DNE106 DNE106B DNE106D DNE106E DY27457AA DY52032A DY53502A DY53504A
8×6-16 DNF100 DY30546A DNF3 MY39056AA160
3K8×6-16A DNG100 DY48890AA DNG3 MY48888A160
3K10×8-16 DNC100 DY48899AA DNC3 MY48902A160
3K10×8-16H DND100 DY48925AA DND3 MY48928A160
3K10×8-17 DNH100 CY29134A DNH3 MY38068A170 DNH106 DNH106B DNH106D DNH106E DY29137A DY52034A DY55261A DY55258A
Part group Group / size YSM ref. OEM no.
Adaptor Group 2 · 8″ DAF108 DY46074AAP
Group 2 · 10″ DAH108 DY21806ACP
Group 2 · 13″ DAS108 DY21857ABP
Group 3 · 14″ DNA108 DY28285ACP
Group 3 · 16″ DNE108 DY27463ACP
Frame Mark IIIA Group 1 D1119 DY55721B
Mark IIIA Group 2 D2119 DY55718A
Mark IIIA Group 3 D3119 DY55723A
Bearing housing Mark IIIA Group 1 D1201 CY55739AP
Mark IIIA Group 2 D2201 CY55742AP
Mark IIIA Group 3 D3201 DY55743AP
Feet 6″ & 8″ DKA109 CY55732AK
3×1½-8 DYD109 CY55733AK
8″ & 10″ small DYF109 CY55736AK
10″ large & 13″ DYS109 CY55737AK
Group 3 DNA109 CY55738AK
Shaft Group 1 D1105S CY50686A
D1105 CY50683A
Group 2 D2105S CY32768B
D2105 CY21361BA
Group 3 D3105S CY50467A
D3105 CY50463A
Sleeve Group 1 D1177 AY50691A
Group 2 D2177 AY38913AA
Group 3 D3177 BY39477A

OEM part numbers appear for identification and cross-reference only: each names the part of the referenced standard design that the YSM reference is manufactured to interchange with, dimensionally, at the same size and group. Suffix variants within one position — covers carrying B, D, E or F, shafts carrying S — are configuration variants, and the applicable one is confirmed during review. Numbers and size designations follow the source interchange sheets; size, group and configuration are verified from the pump nameplate before any order is accepted.

Available Materials

Titanium shaft sleeve machined by YSM as a replacement pump part
A titanium shaft sleeve machined at YSM for an exotic-alloy pump — sleeves, shafts and wet-end parts are produced in the same material grade as the pump they fit, with material certification on request.
Wet-end replacement parts are available in CF8M (316SS), CD4M / CD4MCu duplex, CN7M (Alloy 20 type), WCB carbon steel, Hastelloy B and C, 100% Nickel, Titanium and Zirconium alloy. The list is backed by the foundry rather than a supplier catalogue: patterns and drawings are held in house, castings run through sand, lost-foam and V-process routes, every impeller is dynamically balanced and every casing pressure-tested — the manufacturing base is documented in the factory review.

What the list means

A replacement part can be supplied in the installed pump’s material — or reviewed for an upgrade where the service has outgrown it. State the required material with the part positions, or send the liquid, concentration and temperature and let the review propose the options.

What it does not mean

Material availability is not a chemical compatibility approval. The same acid name can be pumped in one alloy at one strength and defeat it at another, so material selection is confirmed against your liquid, concentration and temperature with the engineering team — the material input checklist prepares that review.
Back shroud and hub of a two-tonne CD4MCu impeller with a person for scale

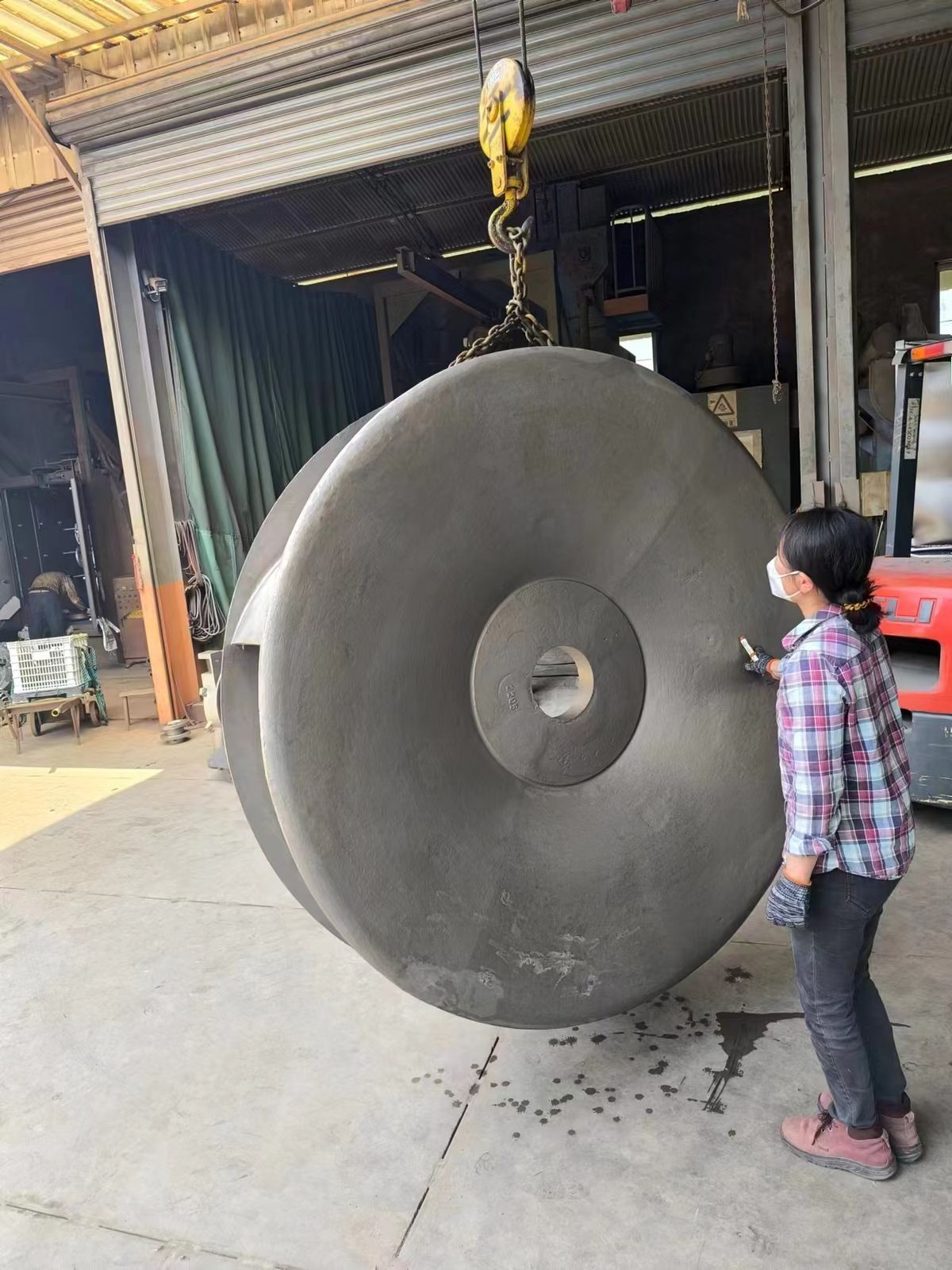

Back shroud of a two-tonne CD4MCu impeller reverse engineered from a customer’s sample for a customer in the United States. CD4MCu is one of the standard grades in this list, and castings of this size run through the same works as the smaller wet-end parts — see reverse engineering for parts that are obsolete or undocumented.

How to Order Replacement Parts

Five enquiry routes, ordered by speed. Whichever route starts the conversation, the review confirms size, group, configuration and material before quotation — nothing is quoted on faith from a reference number alone.

Nameplate photo

The fastest route: model, size, group and serial let the review confirm the exact part revision without disassembly. How to read a pump nameplate →

Part number

Send the OEM or YSM reference number with the required quantity — the finder and cross-reference tables above map one numbering system to the other, and position numbers from the sectional sheets serve the same purpose.

Material

State the required wet-end material, or ask for a review against the liquid, concentration and temperature. Material input checklist →

Drawing or sample

For obsolete or modified parts, reverse engineering works from your drawing, sample or dimensioned photographs — YSM maintains its own drawings and patterns, with inspection reports, dynamic balancing for impellers and pressure testing for casings.

Bought-out components

SKF or equivalent bearings, John Crane or equivalent mechanical seals, WEG or equivalent motors — stated with the parts order and confirmed in the quotation.
In a pump-down situation, say so in the first message: the urgent parts RFQ checklist collects operational priority, identification, material, inspection and delivery data in one request.

Send Your Parts Requirement

Attach a nameplate photo or part list and the reply is a reviewed quotation — part identification confirmed against nameplate data, material options where the service calls for them, and lead time. Finished orders ship with inner cartons plus non-fumigation wooden export crates as the standard packaging mode; inspection documentation follows the scope stated in the enquiry.
Submit Parts RFQ

Replacement Parts FAQ

How do I identify the right replacement part?
Send a nameplate photo and the position number from the sectional sheets above. The nameplate carries model, size, group and serial; the position number identifies the part on the drawing. Size, group and configuration are confirmed before quoting, so the pump does not need to be disassembled for measurement first.

Are YSM parts interchangeable with my existing pump?
G196-programme parts are manufactured to be dimensionally interchangeable with Goulds 3196 pumps of the same size and group, and D Mark III-programme parts with Durco Mark III type pumps of the same size and group. Interchange is confirmed against your nameplate data before any order is accepted — a reference number alone is not treated as a fit conclusion.

Which materials can be supplied?
CF8M, CD4M/CD4MCu, CN7M, WCB, Hastelloy B and C, 100% Nickel, Titanium and Zirconium alloy. If the right material is not certain, send the liquid, concentration and temperature and the engineering team reviews the options — availability is not a chemical compatibility approval.

What if my part is obsolete or has no number?
Send a drawing, a sample or clear photographs with key dimensions. YSM maintains its own drawings and patterns and reverse-engineers parts on that evidence, with inspection reports, dynamic balancing for impellers and pressure testing for casings.

Do you supply complete pumps or only individual parts?
Scope is configurable: individual replacement parts, bare wet ends or complete pumps, under the same review discipline. If the repair-or-replace decision is still open, the repair-or-replace guide frames it before any quotation.

Can bearings, mechanical seals and motors be included?
Yes — bought-out components are supplied alongside manufactured parts: SKF or equivalent bearings, John Crane or equivalent mechanical seals, WEG or equivalent motors. State them with the parts list so the quotation carries one scope.

What inspection documentation comes with replacement parts?
Inspection reports accompany the manufacturing record — impellers are dynamically balanced and casings pressure-tested as standard, and the wider quality programme is documented in the factory review. State any further documentation requirements in the enquiry so scope is fixed at quotation.

Are OEM or branded (ODM) orders supported?
Yes — OEM and ODM programmes are part of the standard offer (see About YSM Pumps). Branding, documentation and packaging requirements enter the same technical-commercial review as the parts themselves; state them in the enquiry rather than after order.

How is pricing confirmed?
Quotations are issued against a reviewed identification — part positions, material, quantity and inspection scope — not against a reference number alone, which is why no public price list exists for the programme. Send the nameplate data and requirements; the quotation then references the confirmed parts it prices.

Request a Parts Quotation

The form below carries the initial request; drawings, nameplate photos and any remaining data can follow during review. The technical review uses, where available: a nameplate photo (model, size, group and serial), the position numbers from the sectional sheets, OEM or YSM reference numbers with quantities, the required wet-end material — or the liquid, concentration and temperature for a material review — inspection and documentation needs, destination and target delivery date. For obsolete or modified parts, add a drawing, sample or dimensioned photographs. In a pump-down situation, state the operational priority: the urgent parts RFQ checklist collects everything in one request.

Open “Add technical details” to fill in what you know, and mark anything uncertain as unknown — a marked gap is reviewable, a silent one is not.

Parts RFQ

Replied by the technical team with the reviewed part identification and quotation scope.

Replacement Parts Decision Guide

Selection boundaries save both sides a review cycle: the fastest quotation starts on the right page. This page is the parts path for installed B73.1 pumps of the two referenced patterns; the lists below mark where a different starting point serves the enquiry better.

Start with this page when

  • An installed 3196-type or Mark III-type pump needs wet-end or power-end parts, and a nameplate, reference number or sample is available.
  • The part is obsolete, modified or undocumented and needs the reverse-engineering path.
  • Bought-out components — bearings, mechanical seals, motors — travel with the parts order.
