What ISO 5199 Specifies

ISO 5199 is the international technical specification for Class II centrifugal pumps — single-stage or multistage, horizontal or vertical, with any drive, for general application. Chemical process pumps conforming to ISO 2858 are named as typical of the pumps it covers. It belongs to a set of three classes: Class I carries the most severe requirements and Class III the least severe. The current edition is ISO 5199:2002, confirmed in 2018.

ISO 5199 sets requirements, not dimensions. Principal dimensions, designation and nominal duty point come from ISO 2858 (EN 22858), so the two are read together — see ANSI, ISO and API standards compared.

Key technical requirements

• Shaft deflection at the seal faces, under radial load within the allowable operating range: no more than 0.05 mm (50 µm).
• Rolling-bearing basic rating life L10: at least 17,500 hours.
• First lateral critical speed: at least 10% above the maximum allowable continuous speed.
• Vibration on test for horizontal pumps on rigid support, measured at the bearing housing: 3.0 mm/s r.m.s. for shaft centre heights up to 225 mm, 4.5 mm/s above.
• Pressure basis for ISO 2858 pumps: at least 16 bar gauge at 20 °C in cast iron, ductile iron, carbon steel or stainless steel.
• Hydrostatic test at 150% of maximum allowable working pressure for 10 minutes; minimum corrosion allowance 3 mm.
• Seal and packing cavity dimensions are referenced to ISO 3069.

The standard lets a supplier offer pumps that deviate from a clause, provided every deviation is stated. YSM’s AC single stage range is designed to EN ISO 5199 and complies with EN 22858 (ISO 2858).

ISO 5199, ISO 9908, API 610 and ASME B73.1 at a Glance

Sources: ISO 5199:2002 scope and published preview, iso.org/standard/31945; ISO 9908, iso.org/standard/17790; deflection, bearing-life, hydrotest and corrosion-allowance figures as tabulated by Wilfley. The standard itself governs; purchaser datasheets may add requirements.

Replacing Installed European-Pattern Pumps

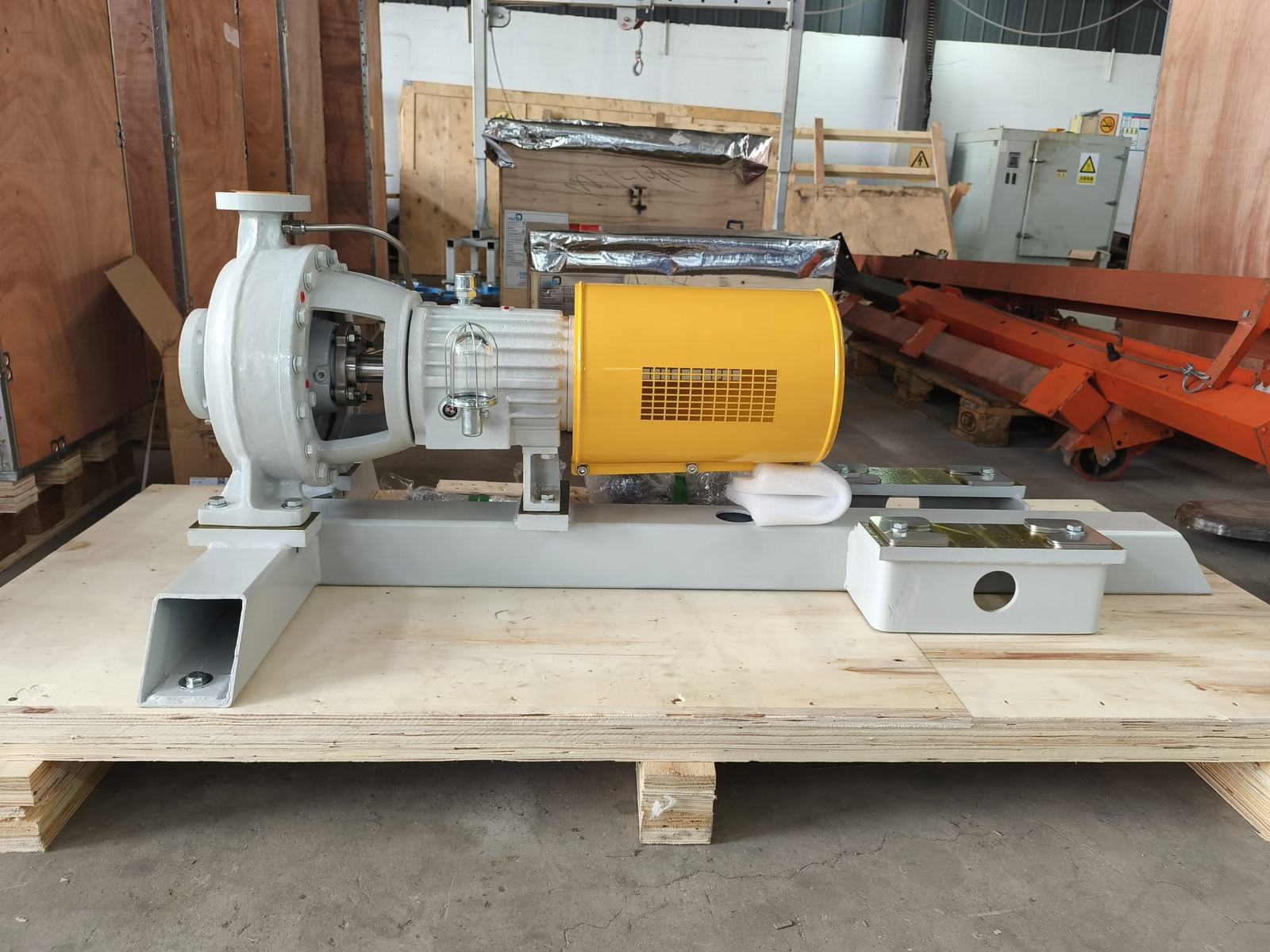

The AC range is manufactured to the EN ISO 5199 / EN 22858 (ISO 2858) pattern and is offered as a non-OEM replacement for installed European-pattern process pumps of this standard, including common Sulzer-type installations; the DW, DN, KZ, KM and KVT ranges are offered as non-OEM alternatives for equivalent Sulzer-type installations. In every case, interchangeability and interface dimensions are confirmed against the installed pump’s documentation during the selection review — nothing is promised from a family name. Start from the range page that matches the installed pump, or send the nameplate with the duty as run today. Running ANSI B73.1 equipment instead? Start from the ANSI replacement programme.
