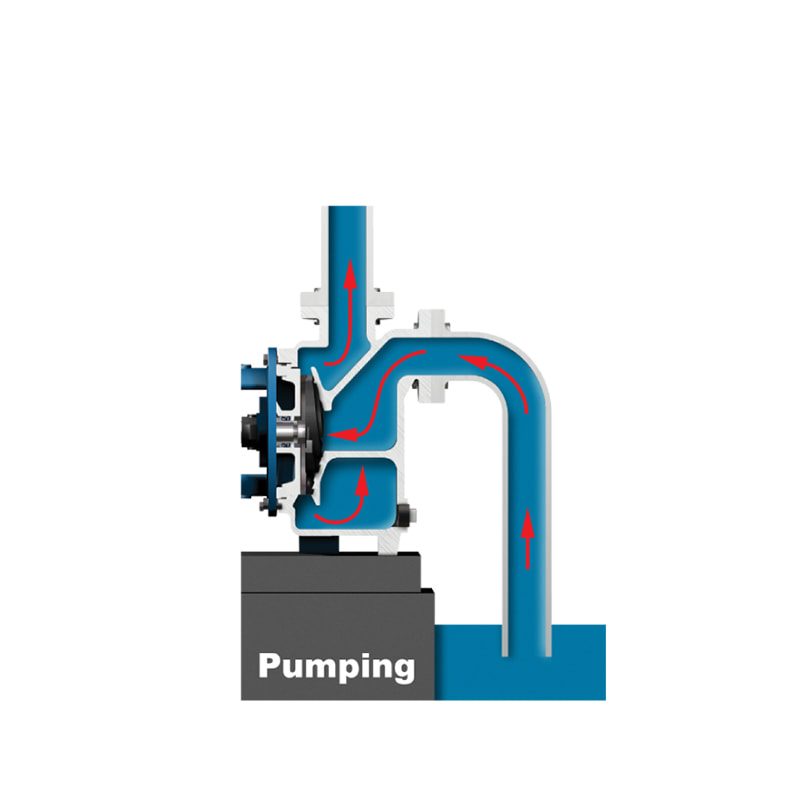

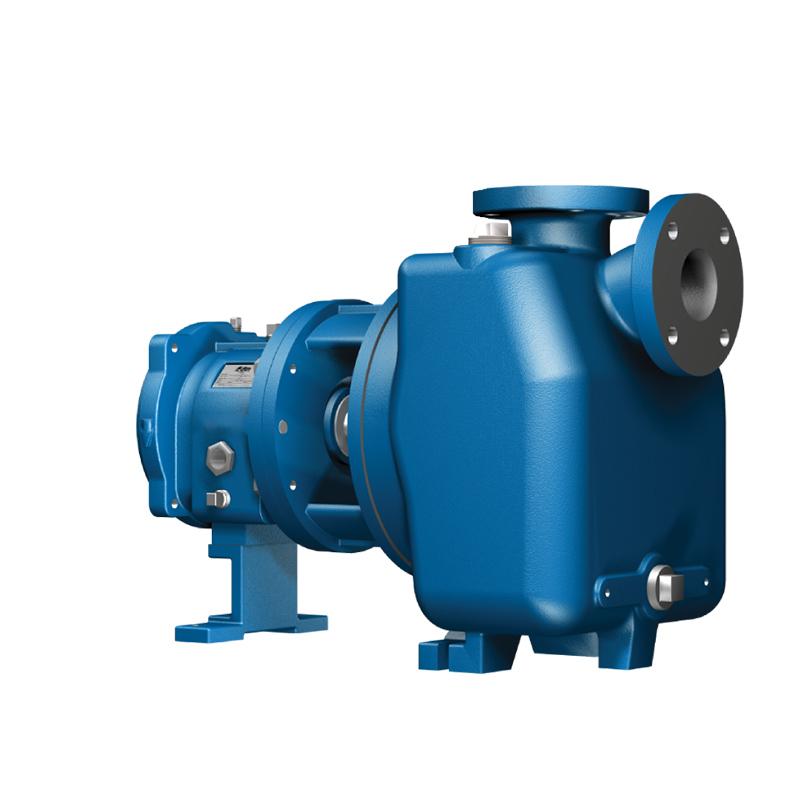

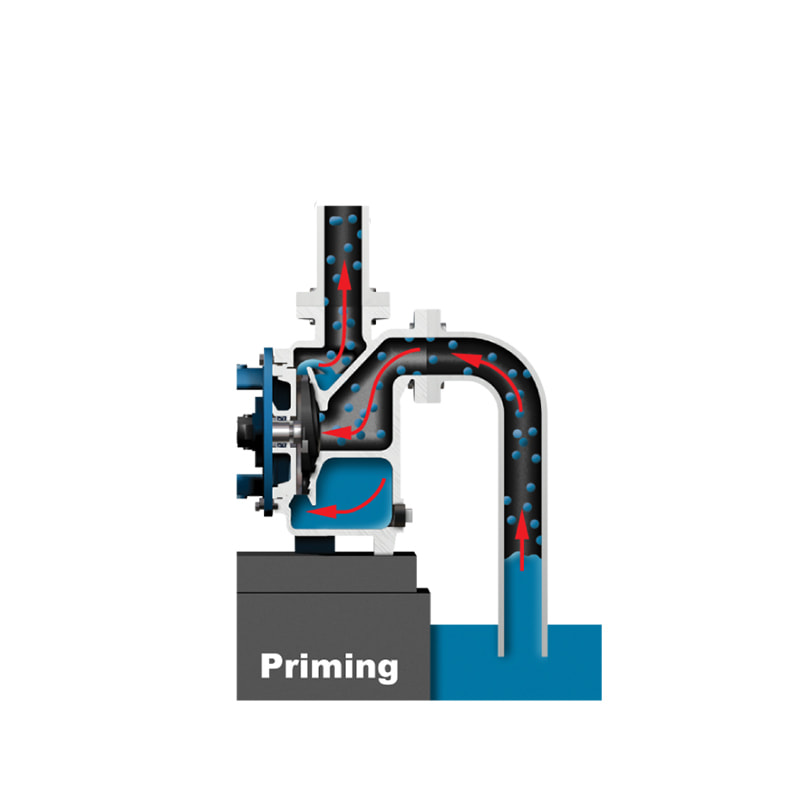

The 3796 Self-Priming Process Pump is a reliable and efficient solution for various industrial applications. With its self-priming feature, this pump can quickly evacuate air from the suction line, eliminating the need for external priming. It also utilizes the existing 3196 power end, making it an ideal choice for customers who want to upgrade their existing pump systems without incurring additional expenses.

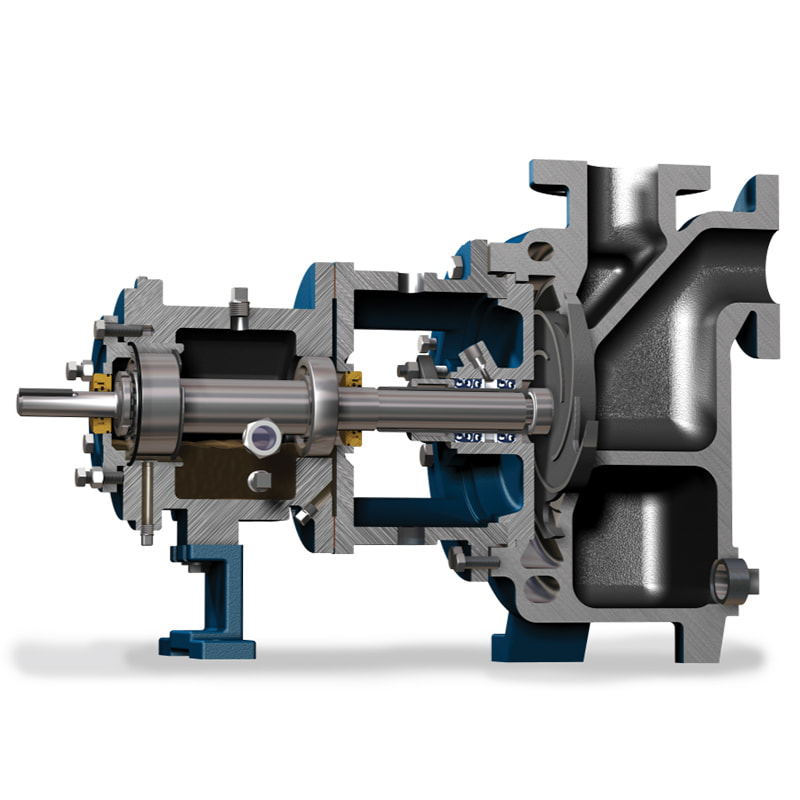

The 3796 Self-Priming Process Pump also boasts a rear pull-out design that allows for easy maintenance and repair. The external axial impeller adjustment feature makes it easy to adjust the impeller without removing the pump from the piping system. Additionally, the pump has an open non-clogging impeller that can handle various fluids without clogging.
This pump is designed to meet ANSI foot pattern standards, ensuring compatibility with a wide range of piping systems. It also has an extra-large oil sump and a rigid frame foot, ensuring high reliability and durability in harsh operating conditions.
The 3796 Self-Priming Process Pump is suitable for various applications, including bilge water removal, industrial sump, chemical transfer, mine de-watering, and filter systems. Moreover, it comes with optional features such as a finned-tube oil cooler, multiple stuffing box cover options, standard bore, large bore, and taper bore, providing additional customization options to meet the specific needs of customers.
Overall, the 3796 Self-Priming Process Pump is a top-quality solution for customers who want a reliable and efficient pump that can handle various industrial applications. Its self-priming feature, easy maintenance, and customization options make it a popular choice for various industries.
Specifications
- Capacities to 1250 GPM (284 m3/h)
- Heads to 430 feet (131 m)
- Temperatures to 500° F (260° C)
- Pressures to 375 PSIG (2586 kPa)
- Effective static lift to 20 feet (6 m)
Features
- Self-Priming
- Utilizes Existing 3196 Power End
- Rear Pull-Out Design
- External Axial Impeller Adjustment
- Open Non-Clogging Impeller
- ANSI Foot Pattern
- Extra Large Oil Sump
- Rigid Frame Foot
Applications
Bilge Water Removal, Industrial Sump, Chemical Transfer, Mine De-watering, Filter Systems
Size optional
| Group | Pump Size | Discharge | Suction | A | B | D | E | x | Bare Pump Weight Lbs. (kg) |
| STi | 1x1.5-6 | 1 | 1.5 | 15.5(394) | 5(127) | 7.5(191) | 4(102) | 7.25(184) | 170(77) |
| 1.5x1.5-8 | 1.5 | 1.5 | 7.875(200) | ||||||
| MTi | 2x2-10 | 2 | 2 | 21.75(552) | 6.5(165) | 10(254) | 6(152) | 10(254) | 270(123) |
| 3x3-10 | 3 | 3 | 22.625(575) | 6.75(171) | 315(143) | ||||
| 4x4-10 | 4 | 4 | 23.375(594) | 9.1875(233) | 370(168) | ||||
| 3×3-13 | 3 | 3 | 22.625(575) | 6.75(171) | 11.5/(292) | 400(182) | |||
| 4x4-13 | 4 | 4 | 23.375(594) | 9.1875(233) | 470(214) | ||||
| 6x6-13 | 6 | 6 | 15.25(387) | 10(254) | 14(356) | 8(203) | 14(356) | 690(314) | |
