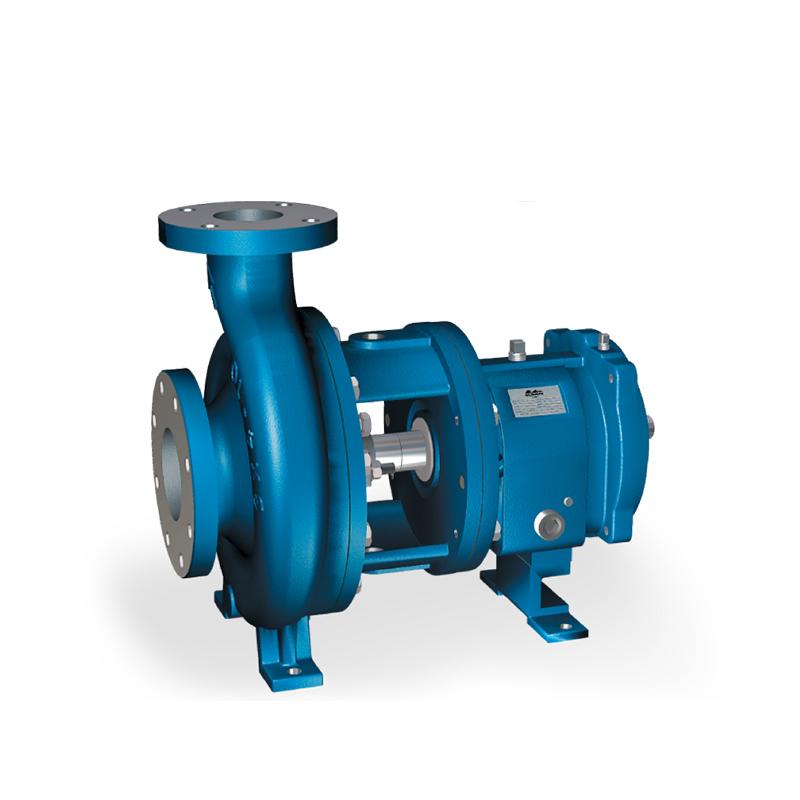

The Yingsiman 3196 centrifugal pump is a versatile and robust solution that can meet the requirements of a wide range of industrial applications. This pump is designed to handle various fluids and meet different operating conditions, thanks to its availability in three different materials – SS316, CD4M, and CN7M.
These materials are carefully selected to ensure compatibility with different chemical compounds and environmental conditions. The SS316 variant is ideal for handling corrosive and acidic fluids, while the CD4M model is designed for high-temperature and high-pressure applications. The CN7M variant is perfect for handling fluids with high chloride and sulfur content, making it an ideal choice for use in the oil and gas industry.
In addition to its versatility, the Yingsiman 3196 boasts excellent hydraulic performance, high reliability, and low maintenance costs. These pumps are designed to deliver high flow rates and pressures while operating with minimal noise and vibration. Furthermore, they are easy to install, operate, and maintain, thanks to their simple design and availability of spare parts.
Overall, Yingsiman 3196 centrifugal pump is a top-quality solution that meets the needs of different industries and applications. Its versatility, reliability, and cost-effectiveness make it a popular choice for handling a wide range of fluids in various operating conditions.
Specifications
- Capacities to 1250 GPM (284 m3/h)
- Heads to 430 feet (131 m)
- Temperatures to 500° F (260° C)
- Pressures to 375 PSIG (2586 kPa)
- Effective static lift to 20 feet (6 m)
Features
- Rear Pull-Out Design
- Efficient Interchangeable Parts
- Capacities to 6000 GPM
- Heads to 730 feet
- Temperatures to 700 deg F
- Fully Open Impeller
- Extra Large Oil Sump
- Rigid Frame Foot
Applications
Water, Chemical, Oil, Pulp, and Paper, General Purpose Pump
Size optional
| Group | Pump Size | AN5I Designation | Discharge Size | Suction Size | X | A | B | D | SP | Bare Pump Weight Lbs. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| STi | 1X1.5-6 | AA | 1 | 1.5 | 6.5(165) | 13.5(343) | 4(102) | 5.25(133) | 3.75(95) | 84(38) |
| 1.5X3-6 | AB | 1.5 | 3 | 92(42) | ||||||
| 2x3-6 | AC | 2 | 3 | 95(43) | ||||||
| 1X1.5-8 | AA | 1 | 1.5 | 100(45) | ||||||
| 1.5X3-8 | AB | 1.5 | 3 | 108(49) | ||||||
| MTi / LTi | 3x4-7 | A70 | 3 | 4 | 11(280) | 19.5(495) | 4(102) | 8.25(210) | 3.75(95) | 220(100) |
| 2x3-8 | A60 | 2 | 3 | 9.5(242) | 220(91) | |||||
| 3x4-8 | A70 | 3 | 4 | 11(280) | 220(100) | |||||
| 3x4-8G | A70 | 3 | 4 | |||||||
| 1x2-10 | A05 | 1 | 2 | 8,5(216) | 200(91) | |||||
| 1.5X3-10 | A50 | 1.5 | 3 | 220(100) | ||||||
| 2×3-10 | A60 | 2 | 3 | 9.5(242) | 230(104) | |||||
| 3x4-10 | A70 | 3 | 4 | 11(280) | 265(120) | |||||
| 3x4-10H | A40 | 3 | 4 | 12.5(318) | 19.5(495) | 4(102) | 10(254) | 275(125) | ||
| 4x6-10G | A80 | 4 | 6 | 13.5(343) | 305(138) | |||||
| 4x6-10H | A80 | 4 | 6 | |||||||
| 1.5X3-13 | A20 | 1.5 | 3 | 10.5(267) | 245(117) | |||||
| 2×3-13 | A30 | 2 | 3 | 11.5 (292) | 275(125) | |||||
| 3x4-13 | A40 | 3 | 4 | 12.5(318) | 330(150) | |||||
| 4x6-13 | A80 | 4 | 6 | 13.5(343） | 405(184) | |||||
| XLTi | 6x8-13 | A90 | 6 | 8 | 16(406) | 27.875(708) | 6(152) | 14.5(368) | 5.25(133) | 560(254) |
| 8x10-13 | A100 | 8 | 10 | 18(457) | 670(304) | |||||
| 6x8-15 | A110 | 6 | 8 | 610(277) | ||||||
| 6x8-15N | A110 | 6 | 8 | 610 (277) | ||||||
| 8x10-15 | A120 | 8 | 10 | 19(483) | 740(336) | |||||
| 8x10-15G | A120 | 8 | 10 | 710(322) | ||||||
| 8x10-16H | A120 | 8 | 10 | 850(385) | ||||||
| 4x6-17 | A105 | 4 | 6 | 16(406) | 650(295) | |||||
| 6x8-17 | A110 | 6 | 8 | 18(457) | 730(331) | |||||
| 8x10-17 | A120 | 8 | 10 | 19(483) | 830(376) |
